How to Maximize the 5G Signal of the Inseego FX4100
Posted by Gordon Reed on 14th Jul 2025

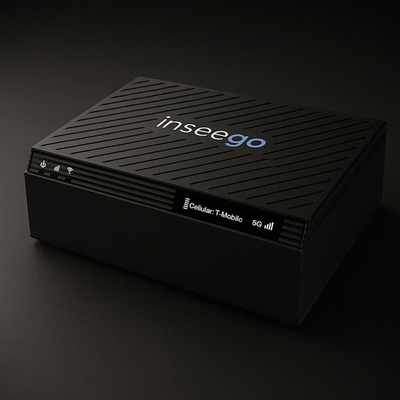

The Inseego FX4100 is a powerful, enterprise-grade 5G indoor router designed to deliver high-speed broadband over Sub-6 GHz 5G and 4G LTE networks. With its robust performance, secure remote management, and dual SIM failover capabilities, it’s an excellent solution for distributed enterprises, branch offices, and edge networking applications.
However, like all cellular devices, the FX4100’s performance is only as strong as its signal. If you're dealing with weak indoor reception, metal enclosures, or distant towers, the stock internal antennas, or even the stubby factory externals, may not cut it. That’s where AntennaGear’s high-performance external antennas make a real difference.
Understanding the FX4100's Antenna Ports
The Inseego FX4100 features two external SMA connectors dedicated to 5G cellular signal reception. These ports support 2x2 MIMO (Multiple Input, Multiple Output) operation, a technology that increases bandwidth, improves signal reliability, and maximizes data throughput by using two separate data streams.
While the FX4100 is fully capable out of the box, its real-world performance can be dramatically improved by upgrading the antennas, especially when deployed in challenging RF environments like rural areas, commercial buildings, or industrial enclosures.
Why External Antennas Matter
There are several environmental and architectural factors that degrade 5G signal indoors:
- Signal attenuation from building materials like concrete, brick, or metal siding
- Multipath distortion, which occurs when reflected signals interfere with one another
- Distance from the nearest tower, which can result in poor RSRP (Reference Signal Received Power)
- Limited antenna gain from small factory-installed options
By using external antennas mounted on a rooftop, exterior wall, or pole, you can bypass these limitations, capture a cleaner signal, and feed it directly into the FX4100’s antenna ports, often resulting in stronger connectivity, faster speeds, and lower latency.
Recommended AntennaGear Solutions for the FX4100
AntennaGear offers a range of high-performance antennas specifically designed to improve 5G and LTE signal reception in MIMO configurations. Here are our top recommendations based on use case:
- Omni-Directional MIMO Antennas
Ideal for situations where tower locations are unknown, signal direction is inconsistent, or the router is used in mobile setups.
- Best for: Urban environments, RVs, quick installs
- Recommended models: M29-16-2C
- Features: Dual SMA leads, IP-rated housing, and pole mount hardware included.
- Directional Panel MIMO Antennas
Perfect for fixed installations where you can point the antenna directly at a known tower location.
- Best for: Suburban or rural deployments
- Recommended models: MDP2C-1-2NF
- Features: High gain, beam-focused reception, and compact panel design
- Yagi MIMO Antenna Kits
Our most targeted solution, excellent for long-distance reception where you need maximum gain and directivity.
- Best for: Remote and rural applications
- Recommended kits: M12-YAGI-2NF
- Features: Two cross-polarized Yagi antennas in one compact design, pole-mount hardware, and long-range performance.
Installation Tips for Maximum Performance
To get the most from your external antenna setup:
- Locate nearby towers using apps like CellMapper or OpenSignal. Look for 5G Sub-6 bands compatible with your carrier. This is applicable if you are going to use a directional antenna.
- Mount high and clear – place the antennas on a rooftop, pole, or mast, free from obstructions. The higher, the better.
- Choose the extension cable wisely – use low-loss coaxial cable such as AGA200 (LMR-195), AGA240 (LMR-240), or AGA400 (LMR-400), and avoid long runs when possible.
- Match connectors – the FX4100 uses 2x SMA Female connectors, so AntennaGear’s dual-SMA antennas connect directly without adapters.
What Kind of Performance Gains to Expect?
Customers using AntennaGear antennas with the Inseego FX4100 often see:
- 10–20 dB improvement in RSRP or SINR
- Significantly higher download/upload speeds, especially in fringe coverage areas
- More network stability, reduced packet loss, and improved video conferencing reliability
- Improved 5G availability, especially for bands with poor indoor penetration
Why Choose AntennaGear?
AntennaGear antennas are manufactured in the USA with quality, durability, and RF performance as the top priorities. Each product is designed for real-world deployments—tested in industrial and enterprise conditions, and ready for the toughest connectivity challenges.
We offer:
- Antennas that are tested and field-proven with Inseego routers
- MIMO-optimized designs to fully leverage the FX4100’s capabilities
- Fast shipping, helpful support, and custom options for your unique environment
The Takeaway
The Inseego FX4100 is a cutting-edge 5G router, but its performance depends entirely on the quality of its cellular signal. By pairing it with AntennaGear’s high-performance external antennas, you unlock the full potential of 5G connectivity, even in areas where signal was previously unreliable or nonexistent.
Ready to Upgrade?
Explore FX4100-compatible antenna kits now at AntennaGear.net, or contact our team for expert guidance on selecting the right solution for your environment.
